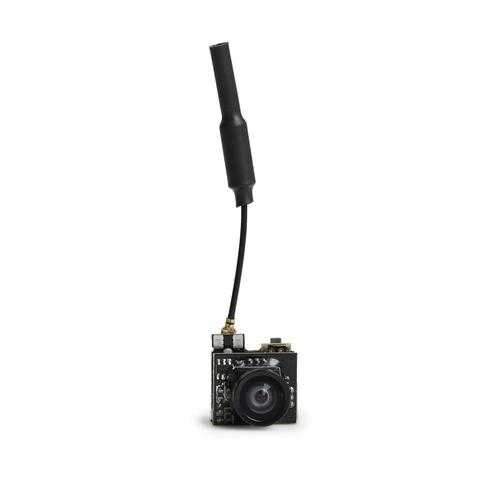

• Bendable & detachable antenna for FPV drone/helicopter better signal transmission, easy to install.

• Supporting touch switch select channel frequency group, supporting NTSC/PAL switch, support vertical inverted image switch.

• 3 in 1: Use it as an AIO FPV camera, as transmitter, antenna. It limits 0.63 * 0.55 * 0.47in size and weight only 0.11oz

• FPV Micro AIO Camera with 150° horizontal and 170° oblique viewing angle to provide excellent image clarity.

• 40 channels available: There are 5 bands and 8 frequency points. Combining each of them will have 40 channels for your choice.

• Sensor: 1/4 'CMOS
• Lens: M8 800TVL Lens
• Angle: 150 ° FOV horizontal viewing angle of 170 ° FOV diagonal perspective
• Format: NTSC / PAL (switchable)
• Power consumption: 380mA @ 3 · 7V
• Power: 3.6-5.5V
• Lens mirror diameter: 2.1mm IR coated FOV150 (horizontal)

Video Transmitter

• Support video format: NTSC / PAL
• Output impedance: 75 Ohm
• Output signal strength: 23 ~ 24dBm
• Output power: 25mW
• Wireless channel: 40CH
• Operating voltage: 3.6V ~ 5.5V
• Current: 100mA
• Audio carrier: 6.5MHz

Button Function

• Short press (1 sec or less): Change channels 1-8
• Long press (More than 1.5 sec): Change bands A-B-E-F-R
• Long + press (More than 3 sec): Change NTSC/PAL system
• NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)Body
• Weight: 3g
• Size: 14*16*12 mm (without antenna)

Feature:

• * AIO FPV camera, transmitter, antenna all 3 functions in 1 limit size and weight
• * 150 ° horizontal and 170° oblique viewing angle to provide excellent image clarity.
• * 40 channels available: There are 5 bands and 8 frequency points. Combining each of them will have 40 channels for your choice.

Package Included:

• 1 * LST-S2 AIO FPV Camera (with cable)
• 1 * wiring harness
• 1 * user manual
